A modern tank survives the RPG by deciding, not by absorbing

In short: active protection systems detect an incoming rocket with radar and fire a countermeasure at it in a few milliseconds, before it reaches the hull. Steel still matters, but the decisive layer on a Merkava or an Abrams is now a sensor and a processor. The weakness has moved from armor thickness to coverage gaps and reload count.

For most of the twentieth century tank protection was an arms race in mass. Thicker plate, sloped glacis, then composite blocks, then explosive reactive armor bolted on top. Every answer cost tons, and the tank kept getting heavier until bridges and transport aircraft became the limiting factor.

Read also: The quietest air defense layer fires nothing at all · Air defense at sea is not the same system bolted onto a ship · Arrow 3 does its job in space, not in the sky above you

Trophy, developed by Rafael with Elta radars, broke that logic. It does not try to survive the hit. It removes the threat from the air a few meters out.

Four layers, four different bills

The interesting column is the last one. A passive plate never runs out. An active system has a magazine, and once it is spent the crew is back to steel.

The sequence happens before anyone notices

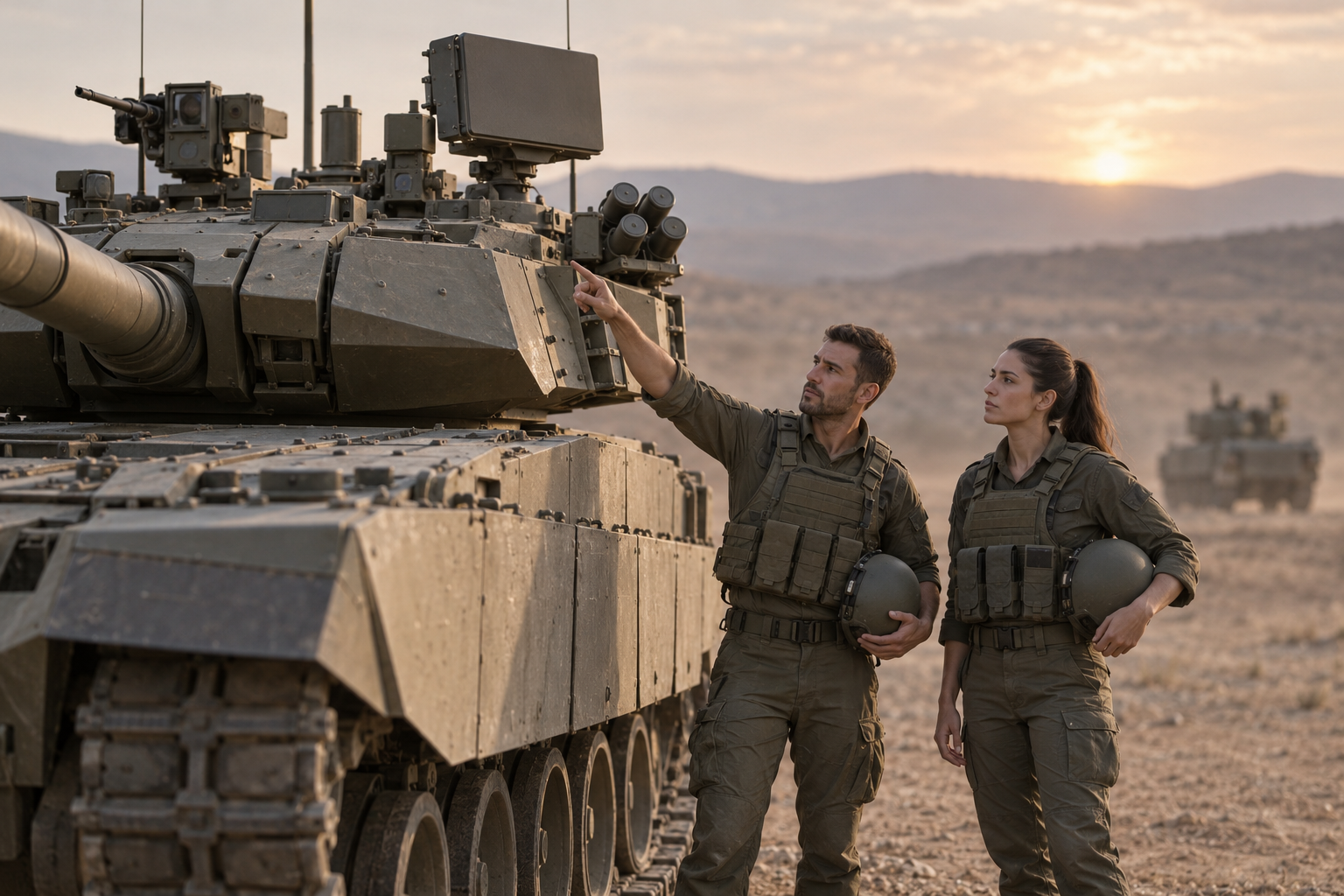

Flat panel radars on the turret watch a full circle around the vehicle. When something crosses the threshold, the computer classifies it, predicts the intercept point, and commands a launcher to fire a pattern of projectiles into its path. The whole chain closes faster than a crew can react to the launch flash.

That ordering will be familiar to anyone who read why the interceptor does not win the engagement. Detection quality sets the ceiling for everything downstream. A countermeasure fired at a track that was classified half a second late hits nothing.

Rafael reported the first operational interception by Trophy in 2011, when a Merkava Mk4 in Gaza defeated an incoming anti tank round. The Trophy system later entered United States Army service on Abrams brigades, which is unusual: American armor programs rarely adopt foreign hardware for a core survivability role.

What the system still cannot do

• Top attack munitions that dive almost vertically sit at the edge of radar coverage
• Loitering munitions arrive slowly and from angles the threat library was not built around
• Interceptor debris creates a danger zone for dismounted soldiers walking beside the tank
• Salvo fire from several launchers can exceed the number of ready shots
• Urban clutter raises false alarm rates, and every false classification burns a round

The drone problem is the sharpest of these. Cheap airframes are slow, small and numerous, which is exactly the profile that radar logic built for fast rockets handles worst. It is the same mismatch that makes stopping a cheap drone harder than stopping a missile in the air defense world, now repeated at vehicle scale.

Why the crew still trains on armor

An active system changes the odds, it does not remove the threat. Crews drill on positioning, hull down firing positions and keeping the thin side and rear plates away from likely launch bearings. Those habits are cheap and they never run out of ammunition.

Seen from the outside, the tank now behaves like a small air defense site. Sensors first, decision second, the shot last. The same architecture that governs national interception scales down to a thirty meter bubble around one vehicle.

What to watch next

Track two numbers in the next procurement round: how many ready interceptors a vehicle carries, and whether the sensor suite adds an upward looking channel. Those two decide whether an active system is real protection or a demonstration.
